CO₂ Incubator C200

CO₂ Incubator C200

REF 13946

Incubator with an inner volume of 200 liters

Advantages of C200:

  • Approved medical device
  • Active sterile humidity:
  • External water reservoir
    Disteilled water is vaporized at 120 °C
    Minimized risk of contamination
    Humidity sensor (rH)
    Very fast recovery
  • CO2 sensor:
  • Dual beam infrared sensor
    Very precise measurement
    Very fast recovery
    Long-term stable
  • Direct heating:
  • Independent six-sided direct heating
    Homogeneous temperature distribution in incubation chamber
    Very fast recovery
  • Optional:
  • O2 control
    Subdivided inner glass door with 6 small doors
    Lockable front door
    Access port
    PC software LaboDat+

C200_english_13_022018.pdf

Open 360° Product Viewer

InteriorElectro-polished stainless steel with coved corners
No tools required for quick disassembly and assembly of interior components
TemperaturePanel heated chamber and door
Intelligent temperature control system avoids condensation in inner chamber
Active sterile Humidity supplyExternal water supply container
CO2 controlDual beam infrared sensor
Measurement independent from temperature and humidity
Fast recoveryFor all adjustable parameters through optimized microprocessor control
Easy handlingMenu guided
Large, backlit LCD
Foil keyboard
Diagnostic systemOptical and acoustic alarm if set point deviation or sensor defect occurs
Door monitoring
Remote alarm
OptionsO2 control: connection for N2 possible
Subdivided inner glass door with 6 small doors
Lockable front door
Access port Ø 30 mm
InterfacesRemote alarm (potential free)
RS485 interface for connection of optional available PC software LaboDat+

ExteriorDimensions 680 x 690 x 930 mm (w x d x h)
InteriorChamber volume 200 l
Electro-polished stainless steel
Shelves height adjustable
TemperaturePanel heated interior chamber and door
Range 27-42 °C starting 5 °C above ambient temperature
Stability / uniformity ±0.1 °C /  0.3 °C
Over-temperature alarm 32-47 °C
CO2 controlDual beam infrared sensor
Range 0–10 % CO2
Stability ±0.1 % CO2
O2 control < 21 % (optional)Measurement with galvanic sensor
Connection of N2
Adjustable range 1–21 % O2
HumidityActive sterile humidity generated by vaporizing module operating at 120 °C
Measuring range 0–98 % rH / adjustable range 60–95 % rH
Supply230 V AC, 50/60 Hz or 115 V AC, 50/60 Hz, 200 W
Inlet pressure 0.8 bar
Ambient temperature 18-30 °C
ClassificationSafety class I
Class IIa for all usage according to EC-Directive 93/42/EEC
Conform to EN 61010

Subdivided inner glass door - for even faster recovery



6 small inner doors
Even faster recovery of all parameters
Even lower gas consumption
Easy cleaning of inner doors
Scope of supply:

  • 6 split shelves 500 x 222 mm (d x w) each

  • 3 shelves 502 x 481 mm (d x w) each

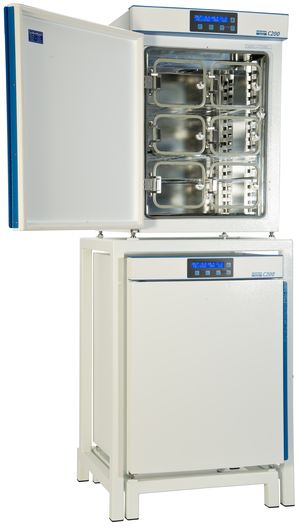

Stacking kit - for safe positioning



Safe, easy and space-saving positioning of the devices in the laboratory


REF 10649 Underframe, 15 cm height, white coated steel



REF 10681 High frame stand, 115 cm height, white coated steel



Roller base



For mobile positioning of the devices in the laboratory, on lockable wheels, preventing roller base movement


REF 14411 Roller base, 15 cm height, on lockable wheels



Access port



Ø 30 mm
Located in the upper left corner inside the incubation chamber
Sealing plug in scope of supply



Lockable front door - higher security for your cultures
Our incubator C200 is available with O2 control as option (O2 < 21 %)
Further accessories of the incubator C200

Incubator-Filter-Box

Gas In-Line-Filter

Accessories for active sterile humidity supply

PC software LaboDat+
