CO₂ Incubator C201CO₂-Inkubator C201

CO₂ Incubator Labo C201

CO₂ Incubator Labo C201

REF 15245

Incubator with 200 liter chamber capacity


Advantages of Labo C201:

  • 7“ colour touch screen
  • UV decontamination (option)
  • Particle filter (P3) within airflow
  • Graphical display of recorded parameters of the past 2 h or 24 h (T, CO2, rH, O2)
  • Cable bushing (Access port)
  • Access control via numerical code (option)
  • RS485 or ethernet interface
  • Active sterile humidity:
  • External water reservoir
    Distilled water is vaporized at 120 °C
    Minimized risk of contamination
    Humidity sensor (rH)
    Very fast recovery
  • CO2 sensor:
  • Dual beam infrared sensor
    Very precise measurement
    Very fast recovery
    Long-term stable
  • Direct heating:
  • Independent six-sided direct heating
    Homogeneous temperature distribution in  incubation chamber
    Very fast recovery
  • Optional:
  • UV decontamination
    O2 control
    Subdivided inner glass door with 6 small doors
    Access control via numerical code
    PC software LaboDat+

C201_englisch_4_022018_01.pdf

InteriorElectro-polished stainless steel with coved corners
Shelves and ductwork easily removable for cleaning purpose
Access port Ø 30 mm
TemperatureIntelligent temperature control system
avoids condensation in inner chamber
Humidity supplyActive sterile humidity via external water supply container
CO2 controlDual beam infrared sensor
Measurement independent from temperature and humidity
Fast recoveryFor all adjustable parameters through optimized microprocessor control
Easy handlingMenu guided 7“ colour touch display
Graphical display of recorded
parameters of the past 2 h or 24 h
Diagnostic systemVisual and acoustic alarm if set point
deviation or sensor defect occurs
Door monitoring
Remote alarm
OptionsO2 control: connection for N2
Subdivided inner glass door with 6 small doors
Access control via numerical code
UV decontamination routine
PC software LaboDat+
InterfacesAlarm contact (potential free)
RS485 or Ethernet interface

ExteriorDimensions 720 x 700 x 870 mm (w x d x h)
InteriorChamber volume 200 l
Electro-polished stainless steel
Shelves height adjustable
TemperaturePanel heated interior chamber and door
Range 27-42 °C starting 5 °C above ambient temperature
Stability / uniformity ±0.1 °C / ±0.3 °C
Over-temperature alarm 32-47 °C
CO2 controlDual beam infrared sensor
Range 0–10 % CO2
Stability ±0.1 % CO2
O2 control < 21 % (optional)Measurement with galvanic sensor
Connection of N2
Range 1-21 % O2
HumidityActive sterile humidity generated by vaporization module at 120 °C
Measuring range 0–98 % rH / adjustment range 60 % – 95 % rH
Access portØ 30 mm
Supply230 V AC, 50/60 Hz or 115 V AC, 50/60 Hz, 250 VA
Inlet pressure for gas 0.8 bar
Ambient temperature 18-30 °C
ClassificationSafety class I
Conform to EN 61010

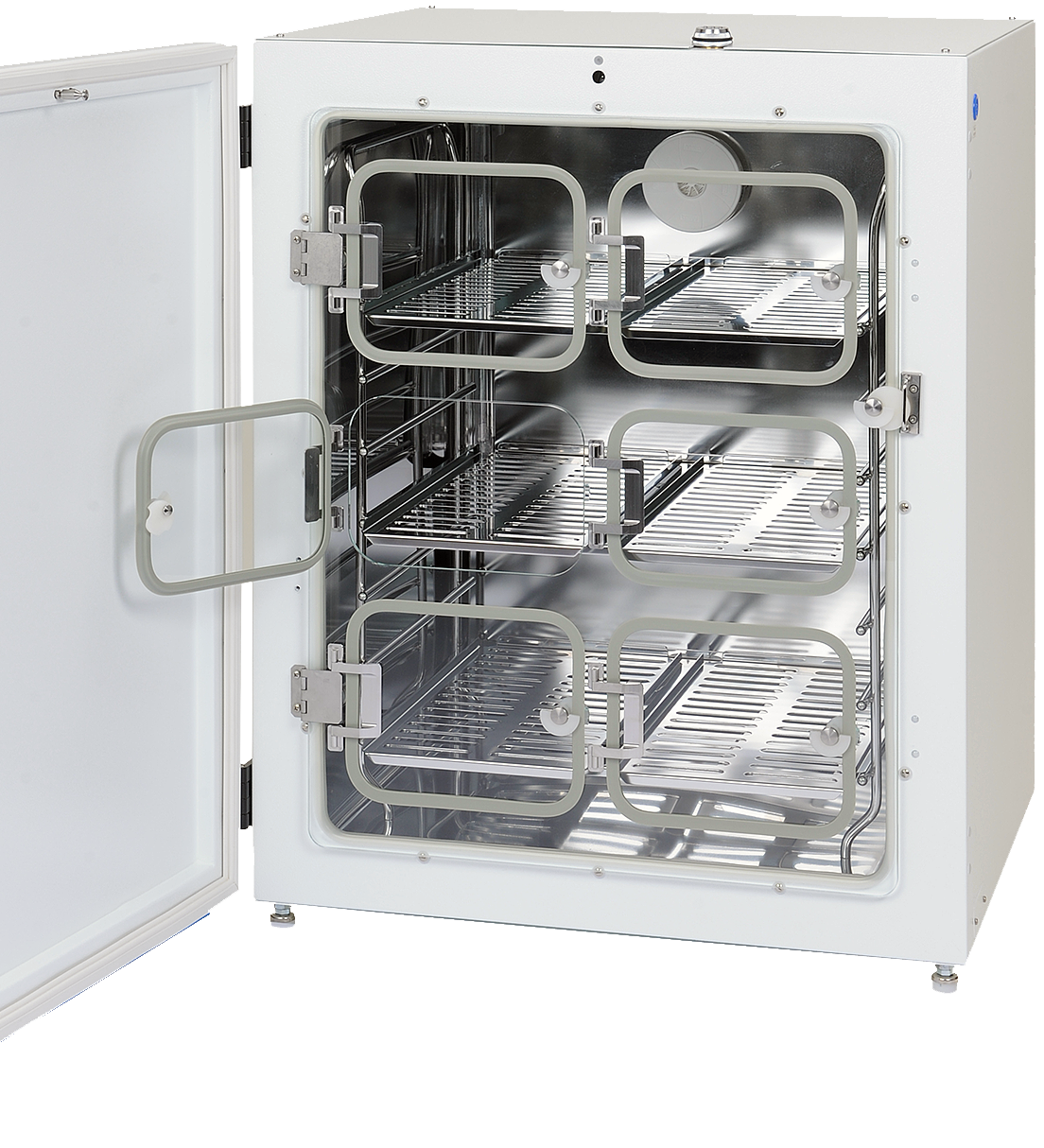

Subdivided inner glass door - for even faster recovery



6 small inner doors
Even faster recovery of all parameters
Even lower gas consumption
Easy cleaning of inner doors

Scope of supply:



  • 6 split shelves 474 x 222 mm (d x w) each

  • 3 shelves 485 x 454 mm (d x w) each



UV decontamination



Individual start by user
Duration: 180 minutes
Short-wave UV radiation (UV-C radiation, <280 nm)
UV mode is terminated immediately when the door is openened



Access control - higher security for your cultures


Access control via touch screen

Mechanical unlocking in case of power failure (emergency release)



Stacking kit - for safe positioning



Safe, easy and space-saving positioning of the devices in the laboratory


REF 10649 Underframe, 15 cm height, white coated steel



REF 10681 High frame stand, 115 cm height, white coated steel



Roller base



For mobile positioning of the devices in the laboratory, on lockable wheels, preventing roller base movement


REF 14411 Roller base, 15 cm height, on lockable wheels



Our Labo C201 incubators are available with O2-control (O2 < 21 %)

Each Labotect CO2 incubator passes an individual cell-growth test prior to delivery!
Further accessories of the incubator Labo C201

Incubator-Filter-Box

Gas In-Line-Filter

Accessories for active sterile humidity supply

PC software LaboDat+
